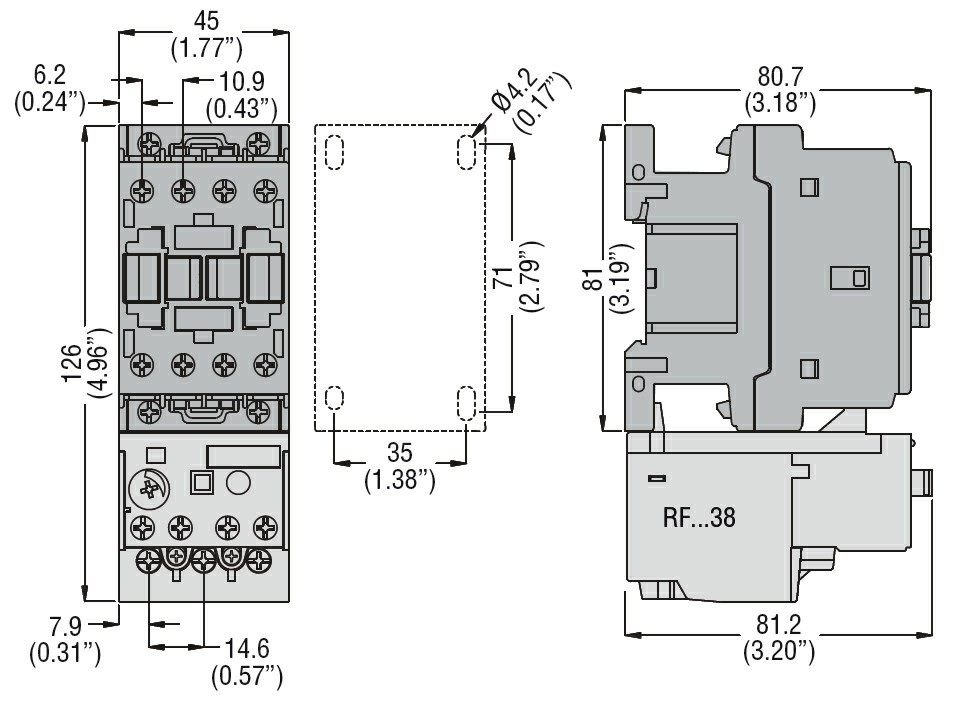

| Description | THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 9A, AC COIL 50/60HZ, 230VAC, 1NO AUXILIARY CONTACT | AF09-30-10-41 24-60V50/60HZ Contactor | AF26-30-00-14 250-500V50/60HZ-DC Contactor | Three-pole contactor, IEC operating current Ie (AC3) = 32A, AC coil 50/60Hz, 230VAC | THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 18A, AC COIL 50/60HZ, 24VAC, 1NO AUXILIARY CONTACT | Three-pole contactor, IEC operating current Ie (AC3) = 38A, AC coil 50/60Hz, 230VAC |
| Content | Product designation: Power contactor
Product type designation: BF09
Contact characteristics
Number of poles: nr. 3
Rated insulation voltage Ui IEC/EN: V 690
Rated impulse withstand voltage Uimp: kV 6
Operational frequency:
min Hz 25
max Hz 400
IEC Conventional free air thermal current Ith: A 25
Operational current Ie:
AC-1 (≤40°C) A 25
AC-1 (≤55°C) A 20
AC-1 (≤70°C) A 18
AC-3 (≤440V ≤55°C) A 9
AC-4 (400V) A 4.9
Rated operational power AC-3 (T≤55°C)
230V kW 2.2
400V kW 4.2
415V kW 4.5
440V kW 4.8
500V kW 5.5
690V kW 7.5
Rated operational power AC-1 (T≤40°C)
230V kW 9.5
400V kW 16
500V kW 21
690V kW 27
IEC max current Ie in DC1 with L/R ≤ 1ms with 1 poles in series
≤24V A 15
48V A 13
75V A 12
110V A 6
220V A –
IEC max current Ie in DC1 with L/R ≤ 1ms with 2 poles in series
≤24V A 18
48V A 18
75V A 17
110V A 12
220V A 1
IEC max current Ie in DC1 with L/R ≤ 1ms with 3 poles in series
≤24V A 20
48V A 20
75V A 20
110V A 15 | The AF09-30-10-41 is a 3 pole - 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals, controlling motors up to 4 kW / 400 V AC (AC-3) or 5 hp / 480 V UL and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories | The AF26-30-00-14 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 11 kW / 400 V AC (AC-3) or 15 hp / 480 V UL and switching power circuits up to 45 A (AC-1) or 45 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. |
- Type of product: Contactors
- Number of poles: 3
- Type of coil: AC coil 50/60Hz
- Rated coil voltage [V]: 230
- IEC operating current Ith (AC1) [A]: 56
- IEC operating current and power Ie (AC3) 400V [A/Kw]: 32A / 16Kw
- UL/CSA horsepower ratings 480V [HP]: 20
- Type of mounting: Screw / DIN rail 35mm
|
- Type of product: Contactors
- Number of poles: 3
- Type of coil: AC coil 50/60Hz
- Rated coil voltage [V]: 24
- IEC operating current Ith (AC1) [A]: 32
- IEC operating current and power Ie (AC3) 400V [A/Kw]: 18A / 7.5Kw
- UL/CSA horsepower ratings 480V [HP]: 10
- Type of built-in auxiliary contacts: 1NO
- Type of mounting: Screw / DIN rail 35mm
|
- Type of product: Contactors
- Number of poles: 3
- Type of coil: AC coil 50/60Hz
- Rated coil voltage [V]: 230
- IEC operating current Ith (AC1) [A]: 56
- IEC operating current and power Ie (AC3) 400V [A/Kw]: 38A / 18.5Kw
- UL/CSA horsepower ratings 480V [HP]: 30
- Type of mounting: Screw / DIN rail 35mm
|
